10/100BASE Tab Down Transformer RJ45 Network Connector With Led

Name: 10100BASE Tab Down Transformer RJ45 Network Connector With Led
Brand: DGKYD
Price: 1 USD

Wholesale 10/100BASE Tab Down Transformer RJ45 Network Connector With Led from china suppliers

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Model Number : KRJ-1041EGYZNL

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Price : Please contact us to get the latest price.

Performance Category : CAT5

Entry Loaction : Side

Connector Height : 13.6mm

Connector Length : 21.3mm

Contact Now

10/100BASE 1x1 Tab Down Transformer RJ45 Network Connector, Led RJ45 Combo plug

10/100BASE Tab Down Transformer RJ45 Network Connector With Led

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Characterization Description:

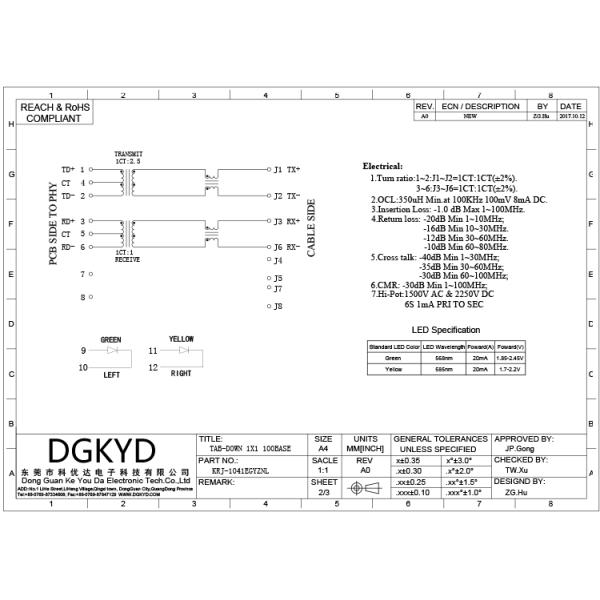

1. RJ45 100 Transformer Jack With Transformer Impedance Resistor/High Voltage Capacitor.

2. Size Same As RJ-45 Modular Jack To Save PCB Space.

3. Reduce EMI Radiation, Improve EMI Performance.

4. Designed For Network Interface Card Application.

5. Designed To Meet IEEE 802.3u Requirement.

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL／ADSL and so on.

Product Tags:

panel mount rj45 connector

surface mount rj45 connector

RJ45 Network Connector with Led
