Tap Up Female Connector RJ45 Modular Jack 10/100BASE With LED

Name: Tap Up Female Connector RJ45 Modular Jack 10100BASE With LED
Brand: DGKYD
Price: 1 USD

Wholesale Tap Up Female Connector RJ45 Modular Jack 10/100BASE With LED from china suppliers

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

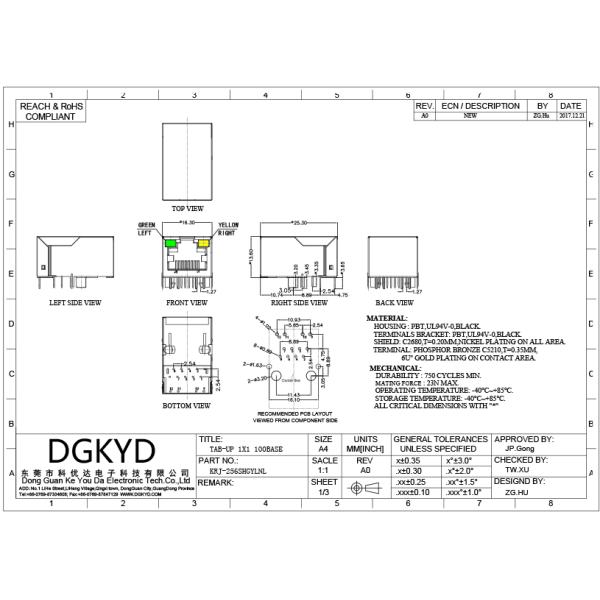

Model Number : KRJ-256SHGYLNL

Price : Please contact us to get the latest price.

Application : fiber optic,ip camera ,dvr,dsl,modem,wifi etc

Feature : Shielded RJ45 network port

OEM/ODM : yes

Type : Multi pin rj45 magjack

Gender : rj45 receptacle

Product Name : RJ45 Modular Jack

Contact Now

Tap Up LED Connector RJ45 Receptacle Modular Jack 10/100BASE Network port

Tap Up Female Connector RJ45 Modular Jack 10/100BASE With LED

Descriptions:

10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) with LEDS
Single port 1X1 Tab-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:25.4mm
LEDS:YES
EMI finger:NO
LEFT LED:Green,RIGHT LED:Yellow

Applications:

Integrated RJ45 connector main used to : 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH @100KHZ 100Mv 8mA DC
