DGKYD511B207AB2A1DP068 180 Degree Notched RJ45 Connector Ethernet Filter POE 6U Network Interface

Name: DGKYD511B207AB2A1DP068 180 Degree Notched RJ45 Connector Ethernet Filter POE 6U Network Interface
Brand: DGKYD
Price: 1 USD

Wholesale DGKYD511B207AB2A1DP068 180 Degree Notched RJ45 Connector Ethernet Filter POE 6U Network Interface from china suppliers

Brand Name : DGKYD

Model Number : DGKYD511B207AB2A1DP068

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 20 days

Packaging Details : 1080 Tray in Carton

Connection Type : pcb Mounting

HOUSING : PBT

Connector Type : Modular Jack

LED Color : Yes.L-Green/R-Yellow

Filter : With Filter

Contact Mating Area Plating Material : Gold 6u/15u/30u/50u

Housing Material : brass/plastic

Contact Base Material : Phosphor Bronze

Storage temperature : - 40 ℃ ~ 85 ℃

size : 15.95*21.55*16.5mm

Latch : TAB-UP

Contact Now

DGKYD511B207AB2A1DP068 180 degree notched RJ45 connector Ethernet filter POE 6U network interface

Parameters

Part Number	DGKYD511B207AB2A1DP068	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-Up
Filter	With Filter	LED Option	With LED
LED Color	Yes.L-Green/R-Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	1000 base-t	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	WithWithout Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

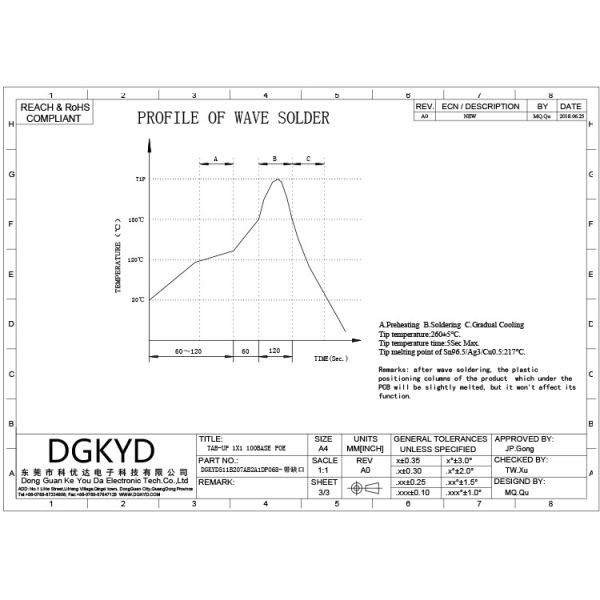

Drawings

DGKYD511B207AB2A1DP068 180 Degree Notched RJ45 Connector Ethernet Filter POE 6U Network Interface

FAQ:

1. Company year, main product type:
Professional design, development/production and sales of network connectors and network transformers
2. Company export country:
We have exported more than countries like USA, Canada, Spain, Russia, Singapore, Thailand, India etc
3. Company Services:
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Smooth communication
