Name: Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree
Brand: DGKYD
Price: 1 USD

Brand Name : DGKYD

Model Number : DGKYD311B083HWA4D

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : Negotiation

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Modular Jack & Plug Interface Type : RJ45 Single Port

Port Configuration : Single

Connector Style : Jack

Housing Material : PBT Black

Shielded : none

Plating : Glod Plating 6u/15u/30u/50u

Status Indicator : G/Y LED

Latch Orientation : TOP

Contact Now

Single port 90 degree side plug 100 megabytes integrated filter rj45 connector

Applications:

Parameters

Part Number	DGKYD311B083HWA4DN	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	Without LED
LED Color	N / A	Panel Stops	Without Panel Stops
Shielded	Metal shielded	Applies To	Printed Circuit Board
Performance Speed	100M BASE-TX	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single port	Number of Positions	8
Jack Configuration	1X 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6U	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Drawings

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree

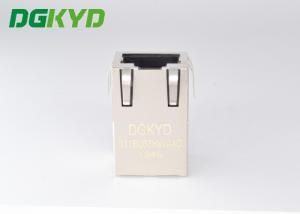

Pictures

Side Plug 100 Megabytes Integrated Filter 1 Port RJ45 90 Degree
