Name: RJ45 Magnetics 2X4 dual deck 8 port Gigabit Ethernet Rj45 connector 08112X4R28F RoHS
Brand: DGKYD
Price: 1 USD

Brand Name : DGKYD

Model Number : DGKYD24Q077HWA4D

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Jack Type : RJ45

Led : Yes

Magnetics : With magnetics

Connector Style : Jack

Connector Type : Connector Assembly

Number of ports : 2x4

Contact Now

DGKYD24Q077HWA4D RJ45 stack connector, MagJack 10/100BaseT, 2X4, No LED, RoHS,0811-2X4R-28-F

ICMs designed for 10/100BT, 1GBT, 10GBT and PoE(plus)
Port configurations ranging from 1×1 to 2×8 (16 ports)
Some port configurations available in vertical mount, low-profile and compressed-mid-plane mounted options.
Entire line of integrated USB-A 2.0 connector options
Optional LEDs, EMI tab-shields and EMI-gasket options
Board-mount options: thru-hole, SMT, pin-and-paste and limited press-fit configurations
Multiple footprint and pin-out configurations available.

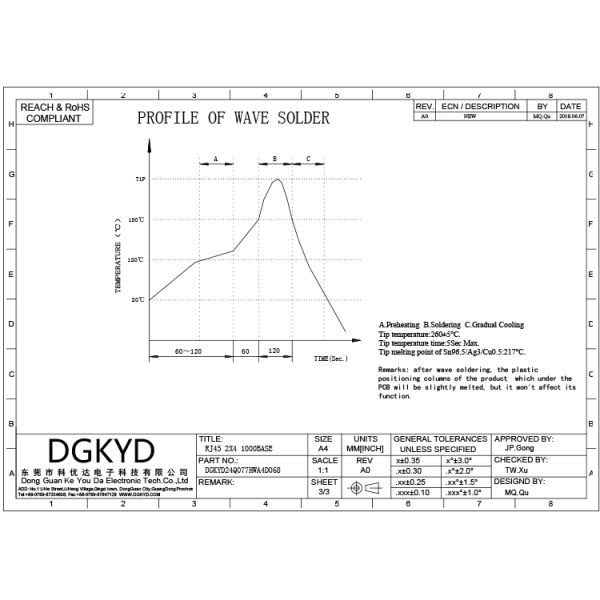

► Product Drawing

RJ45 Magnetics 2X4 dual deck 8 port Gigabit Ethernet Rj45 connector 0811-2X4R-28-F RoHS
