Name: 10G RJ45 Multiple Port Connectors Ethernet Shielded Rj45 Connector Modular Jack
Brand: DGKYD
Price: 1 USD

Brand Name : DGKYD

Model Number : DGKYD414Q003DA1A1D(10G)

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 30 days

Packaging Details : Tray in Carton

EMI : YES

PCB Mount Style : DIP

Performance Category : 10G

Product Name : RJ45 connector

Shield : YES

Port Type : 4 port

Contact Now

► Product Featrues

• EMI protection with shielded
• Available in a variety of metals and plating’s
• Minimum of 750 mating cycles

Ethernet speed up to 10 Gbit/s
Power over Ethernet PoE and PoE+
Compliant with most IC’s for Ethernet applications such as Intel, AMD, Microchip and Realtek
Hub, Router, Switches, IPcameras, IoT

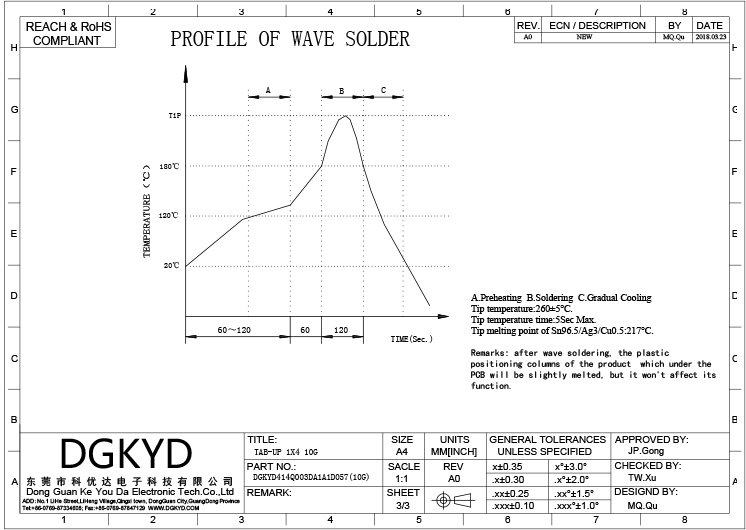

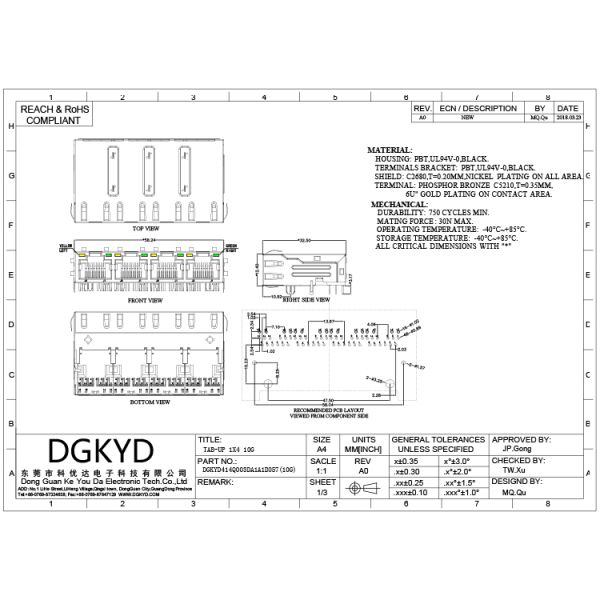

► Product Drawing

10G RJ45 Multiple Port Connectors , Ethernet Shielded Rj45 Connector Modular Jack
